An electrical isolator is a critical safety device used to ensure complete de-energization of electrical systems during maintenance and operational switching. Unlike protective devices, isolators provide visible and verifiable disconnection but must operate under no-load conditions. This article explores isolator design principles, operating mechanisms, classifications, ratings, application scenarios, failure modes, and engineering selection criteria from a practical perspective.
📑 Table of Contents
- 1. Electrical Isolator Fundamentals
- 2. Operating Principle and Switching Sequence
- 3. Functional Roles in Power Systems
- 4. Types of Electrical Isolators
- 5. Electrical Ratings and Utilization Categories
- 6. Application Scenarios
- 7. Isolator vs Circuit Breaker (Engineering Comparison)
- 8. Failure Mechanisms and Maintenance Strategy
- 9. Selection Criteria for Engineers
- 10. FAQ
- 11. Conclusion
1. Electrical Isolator Fundamentals
An electrical isolator is a mechanical switching device designed to disconnect a circuit such that a visible isolation gap is established.
Key Engineering Characteristics
- Provides galvanic isolation
- Operates strictly under no-load conditions
- Ensures zero energy state verification
- Often integrated with earthing switches
In high-voltage systems, isolators are governed by standards such as IEC 62271-102 (High-voltage disconnectors).
Isolation is not simply switching OFF. It includes:
- Disconnecting all energy sources
- Discharging stored energy (capacitors, inductors)
- Preventing backfeed conditions

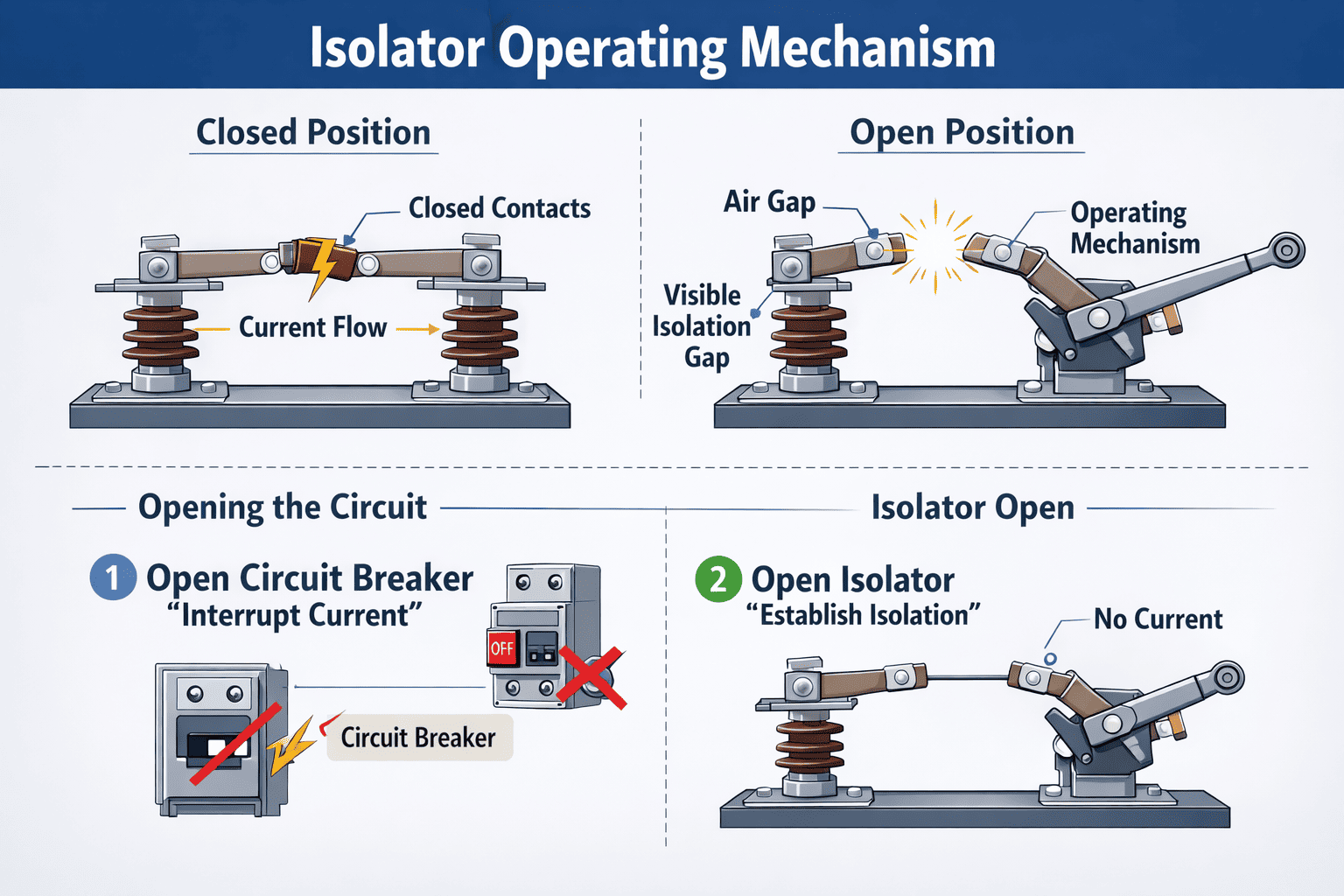

2. Operating Principle and Switching Sequence
An isolator operates by physically separating conductive contacts to create an air-insulated gap.
Contact System Behavior
- Closed state: current flows through metallic contacts
- Open state: an air gap prevents conduction
Air insulation performance depends on:
- Gap distance
- Humidity and contamination
- System voltage
Correct Switching Sequence
Improper operation can result in arc formation and severe contact damage.
De-energizing sequence:
- Open circuit breaker (interrupt current)
- Open isolator (establish isolation)
Re-energizing sequence:
- Close isolator
- Close circuit breaker
This ensures:
- Zero current during isolator operation
- No arc generation
3. Functional Roles in Power Systems
Isolators are safety-critical devices in transmission and distribution systems.
Sectionalization
Allow selective isolation of equipment without shutting down the entire system.
Visible Isolation
Provide a clear visual confirmation of disconnection, essential for maintenance safety.
Grounding Support
Often combined with earthing switches to:
- Remove residual charges
- Eliminate induced voltages
System Flexibility
Enable:
- Bus switching
- Redundant routing
- Maintenance bypass

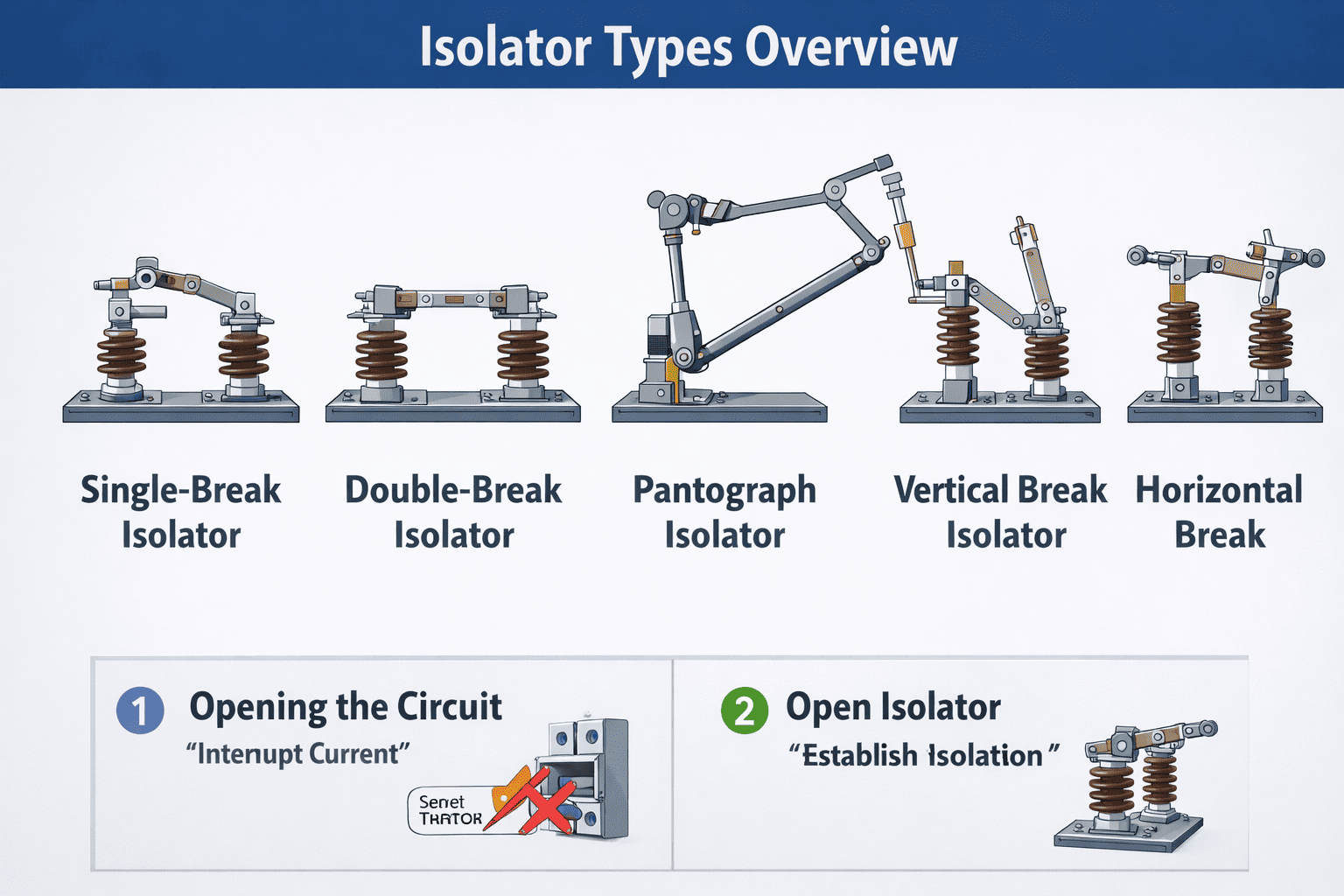

4. Types of Electrical Isolators
By Mechanical Structure
- Single-break isolator: one contact gap, compact design
- Double-break isolator: two gaps, higher insulation reliability
- Pantograph isolator: vertical motion, used in substations
- Vertical break isolator: suitable for limited space
- Horizontal break isolator: simple and widely used
By Installation Location
- Busbar isolator
- Line isolator
- Transfer bus isolator
By Pole Configuration
- 1-pole (single-phase systems)
- 3-pole (three-phase systems)
- 4-pole (with neutral isolation)
5. Electrical Ratings and Utilization Categories
Key Rating Parameters
- Rated voltage (kV)
- Rated current (A)
- Short-time withstand current
- Insulation level (BIL)

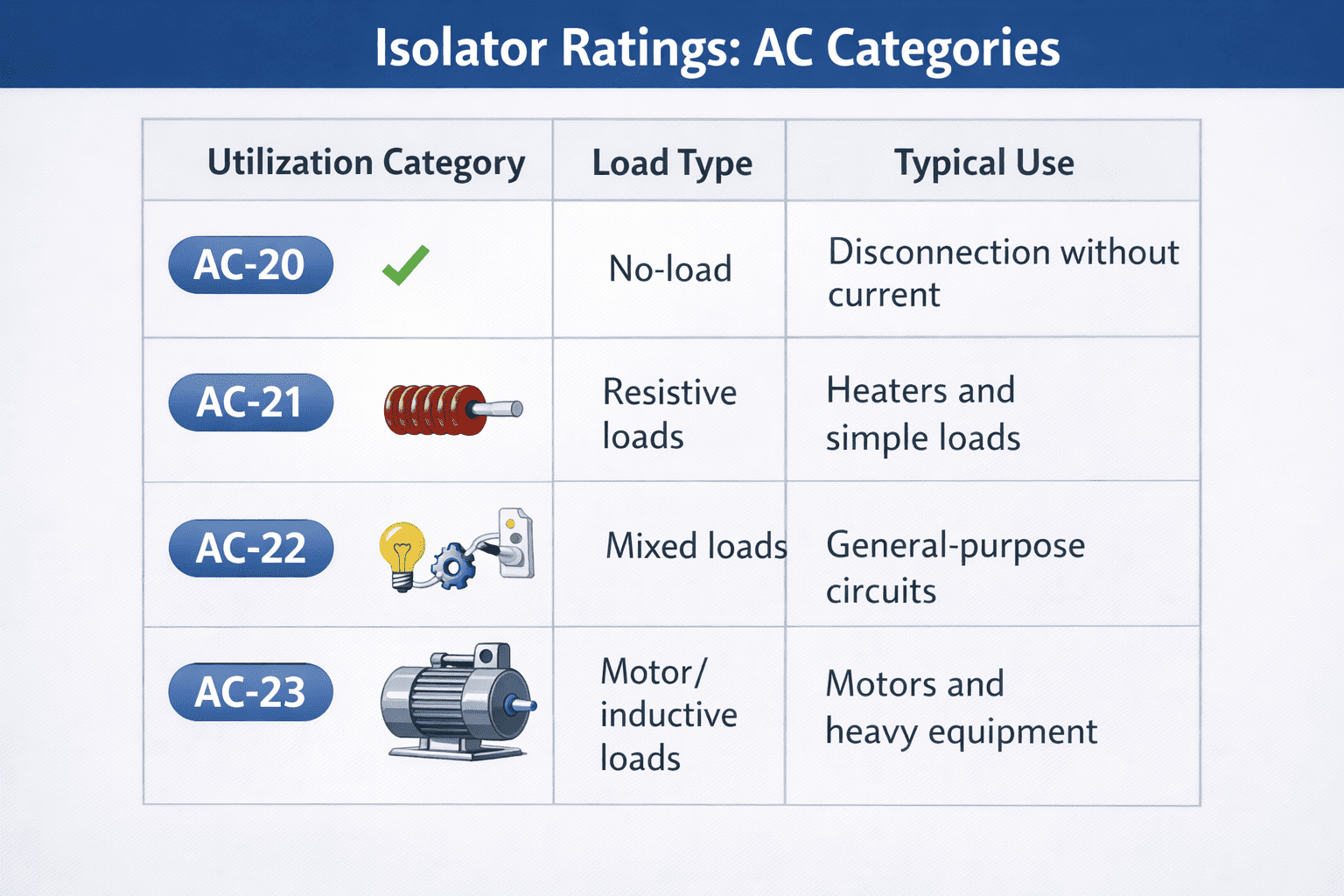

Utilization Categories
| Category | Load Type | Typical Application |
|---|---|---|
| AC-20 | No-load | Isolation only |
| AC-21 | Resistive loads | Heaters |
| AC-22 | Mixed loads | General-purpose circuits |
| AC-23 | Inductive loads | Motors and transformers |
6. Application Scenarios
Industrial Systems
- Motor isolation during maintenance
- Conveyor system shutdown
Renewable Energy Systems
- Solar DC isolation between panels and inverter
- Prevent reverse current flow
Data Centers
- Equipment-level isolation
- Supports maintenance without full shutdown
HVAC Systems
- Local disconnect near compressor units
- Improves maintenance safety
7. Isolator vs Circuit Breaker (Engineering Comparison)
| Parameter | Isolator | Circuit Breaker |
|---|---|---|
| Function | Isolation | Protection + switching |
| Load operation | No | Yes |
| Arc handling | None | Arc quenching system |
| Operation | Manual | Manual + automatic |
| Protection capability | No | Overload & fault protection |
Engineering Insight
A circuit breaker integrates:
- Arc extinguishing system
- Protection relays
- Automatic trip mechanisms
An isolator is purely:
- Mechanical
- Non-protective
- Safety-oriented
8. Failure Mechanisms and Maintenance Strategy
Common Failure Modes
Thermal Degradation
Caused by increased contact resistance due to loose connections or oxidation.
Mechanical Seizure
Occurs due to corrosion, dust accumulation, or lack of operation.
Arc Damage
Result of operating under load conditions.
Insulation Failure
Caused by moisture, pollution, or aging materials.
Maintenance Best Practices
- Periodic operation to prevent sticking
- Infrared thermal inspection
- Contact resistance testing
- Cleaning and lubrication
- Tightening electrical connections
9. Selection Criteria for Engineers
Electrical Considerations
- Rated voltage and current
- Short-circuit withstand capacity
Environmental Factors
- Indoor vs outdoor installation
- Temperature, humidity, pollution level
- Required IP protection rating
Mechanical Requirements
- Manual or motorized operation
- Space constraints
- Interlocking mechanisms
Application-Specific Selection
- Solar systems: DC isolators
- Substations: high-voltage isolators
- Residential: compact modular isolators
10. FAQ
Q1: Why can’t an isolator interrupt load current?
Because it lacks an arc extinguishing mechanism, operating under load would cause dangerous electrical arcing.
Q2: What defines a safe isolation condition?
- Visible contact separation
- Lockout-tagout implementation
- Grounding of the isolated section
Q3: Can an isolator replace a circuit breaker?
No. It does not provide protection against overload or short circuits.
Q4: What is the difference between isolation and disconnection?
- Disconnection: switching OFF
- Isolation: confirmed zero-energy state
Q5: How often should isolators be maintained?
- Inspection: annually
- Functional test: every 6–12 months
- Full maintenance: every 2–5 years
11. Conclusion
Electrical isolators are essential components for ensuring safe operation and maintenance in electrical systems. Although structurally simple, their role in providing visible and reliable isolation is critical. Proper selection, correct switching sequence, and regular maintenance are necessary to ensure long-term safety and system reliability.
